Description and specs

This project is a simple audio monitor module for your Eurorack. It consists of a speaker driver mounted onto an FR4 panel with an amplifier board. Much like the EDP Wasp or the Arp 2600, It will not be the most high definition speaker, especially lacking at the low end, but it is handy for when you may not be able to access your monitors or if you are using a small portable system.

As a kit it is designed to be simple and fast to assemble, so ideal for beginners. There are only a handful of components to solder so should give fast gratification and troubleshooting should be simple. The speaker is exactly 30.5mm wide which means it just fits into the 6HP (30mm) panel width.

  • Width: 6HP
  • Height: 3U
  • Depth: 50mm
  • Current draw idle: 5mA(+12V) 0mA(-12V) 0mA(5V)
  • Current draw Active: 80mA(+12V) 0mA(-12V) 0mA(5V) when driven with 10Vpp square wave at 500kHz
Available to buy from:

Bill of Materials

Part Value Designators Notes
Capacitor any unpolarized 100nF C1, C3, C5 pin pitch 5mm
Capacitor electrolytic 1000μF C4 Diameter 10mm, pin pitch 5mm
Capacitor electrolytic 10μF C2, C7 Diameter 5mm, pin pitch 2mm
Resistor 470KΩ R1 1/4W resistor
Resistor 10Ω R2 1/4W resistor
LM386N-4 LM386N-4/NOPB U1 Must be 4 version that can output 1W
Potentiometer 10K Linear RV1 RK09K Centre dedent
Power socket Shrouded 2.54mm 10 pin (2x5) J2
Thonkiconn Jack PJ398SM J1

Assembly Video


The assembly instructions are shown for the complete kit that is for sale. If you source your own components the parts may look different. Sometimes it is hard to convey in text and image the exact details of assembly so some information may be a bit confusing especially if you are starting out. A video is also available that may be more helpful to follow along.

Components in bag

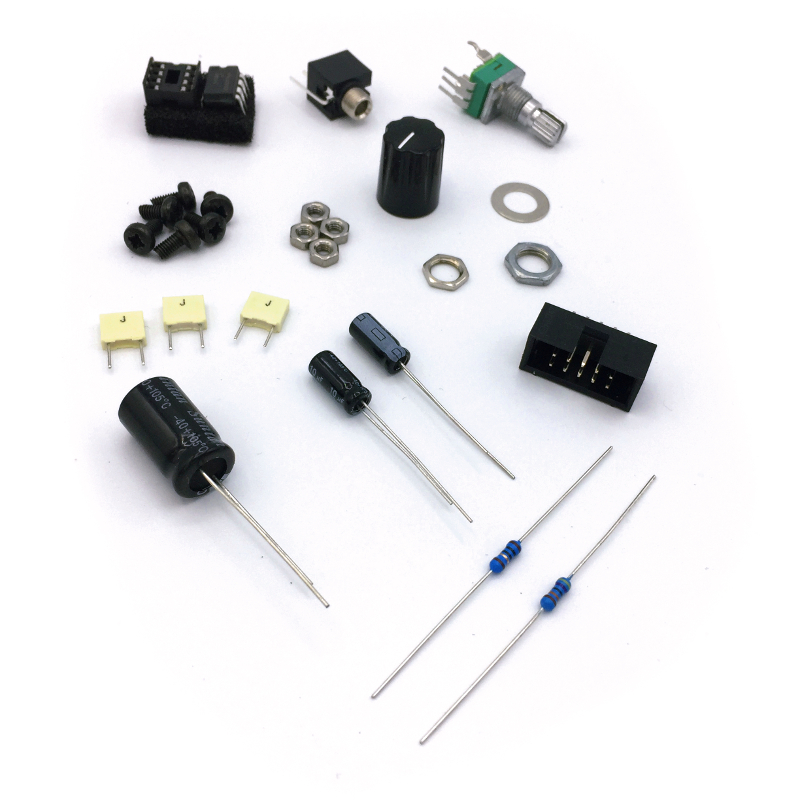

You should have the following small components in an anti-static bag

Other Parts

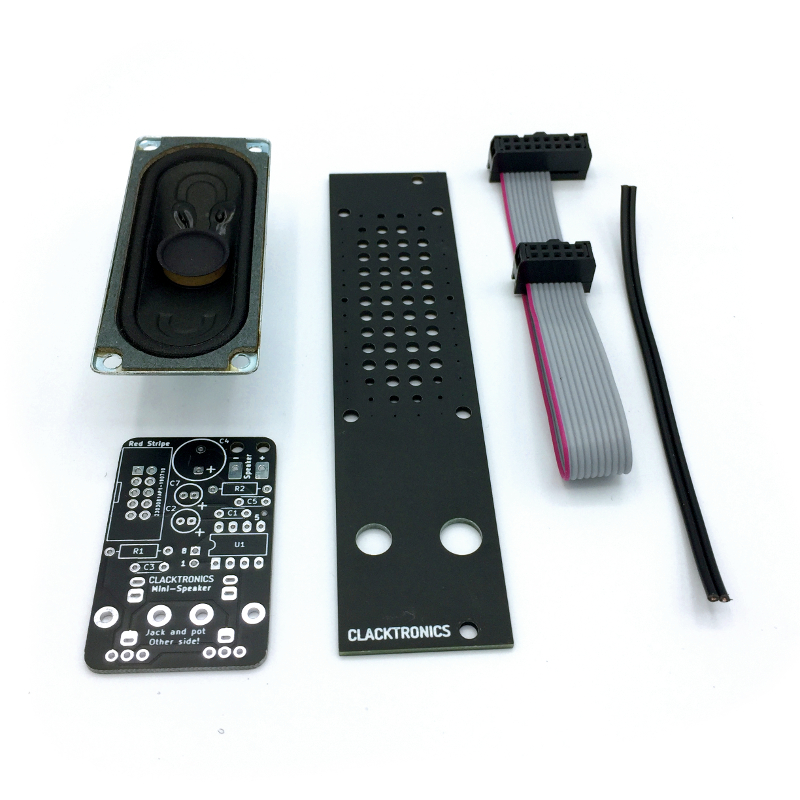

There should also be, a speaker, a panel, a PCB, a wire and a 16 to 10 pin power cable.

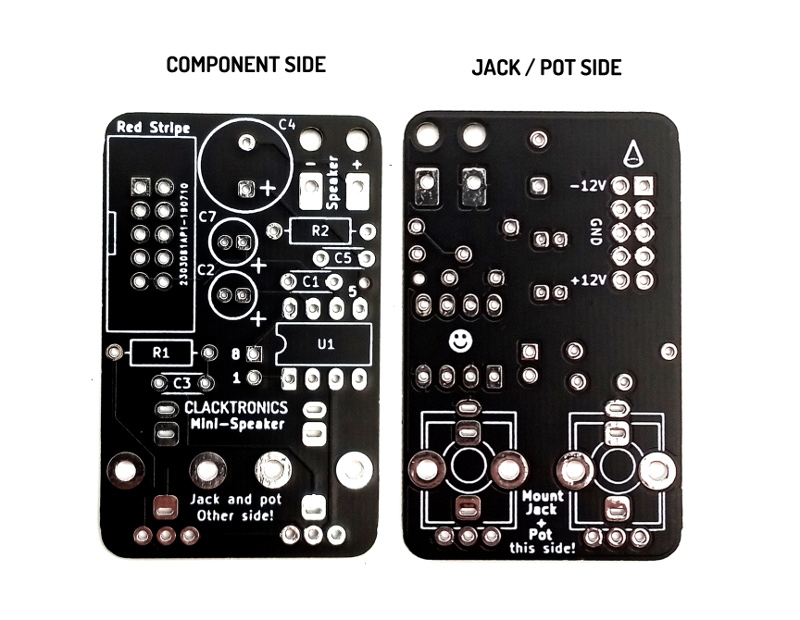

All components are fitted in the top of the PCB apart from the audio jack and the potentiometer. Make extra sure you are fitting the component into the correct side, as it can be hard to remove once soldered!

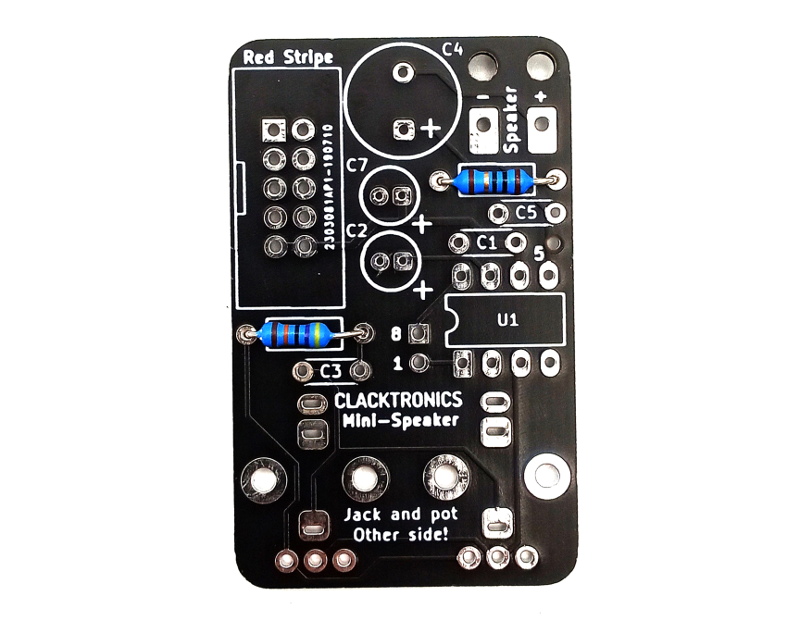

Fit the two resistors, R1 is 470K and R2 is 10 Ohms, the markings are as following

  • 470KΩ = yellow, purple, black, orange
  • 10Ω = brown, black, black, gold

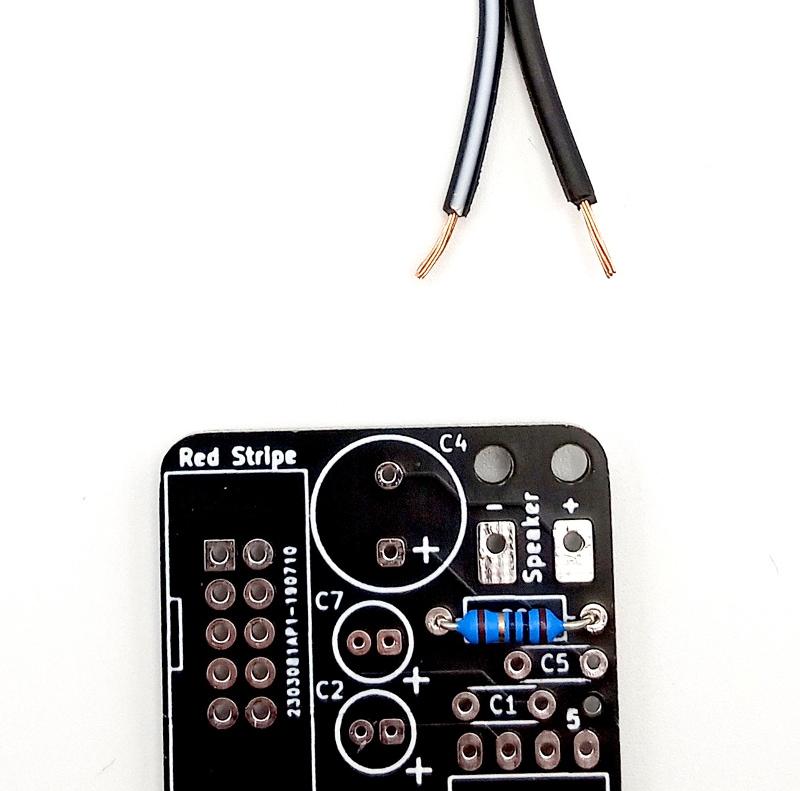

Strip the wire

It is best next to add the wire for the speaker. This is because it can be hard to do once the larger capacitor is in place. Split one end of the wire and strip about 5mm of the end

Feed the wire

The wire is restrained by feeding it through two holes and then into the solder pad. Whilst it is not totally necessary it can make it a bit more rugged. The markings on the wire can go any way around, I like to use white stripe for + and no-stripe for -.

Fix Wire

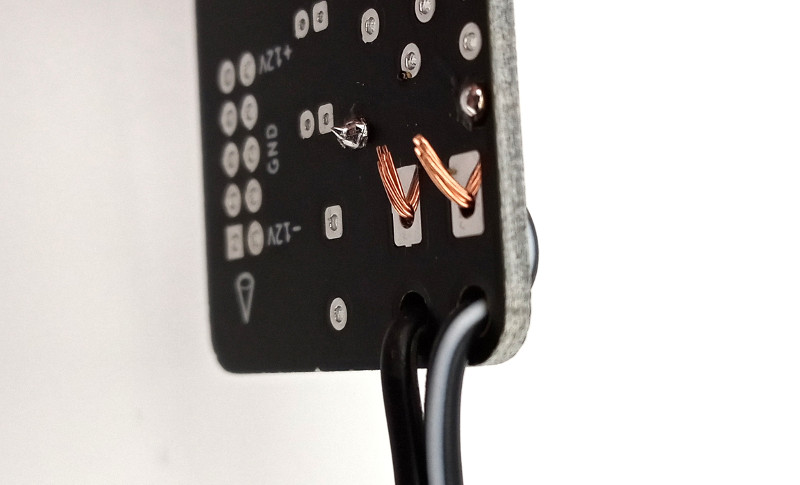

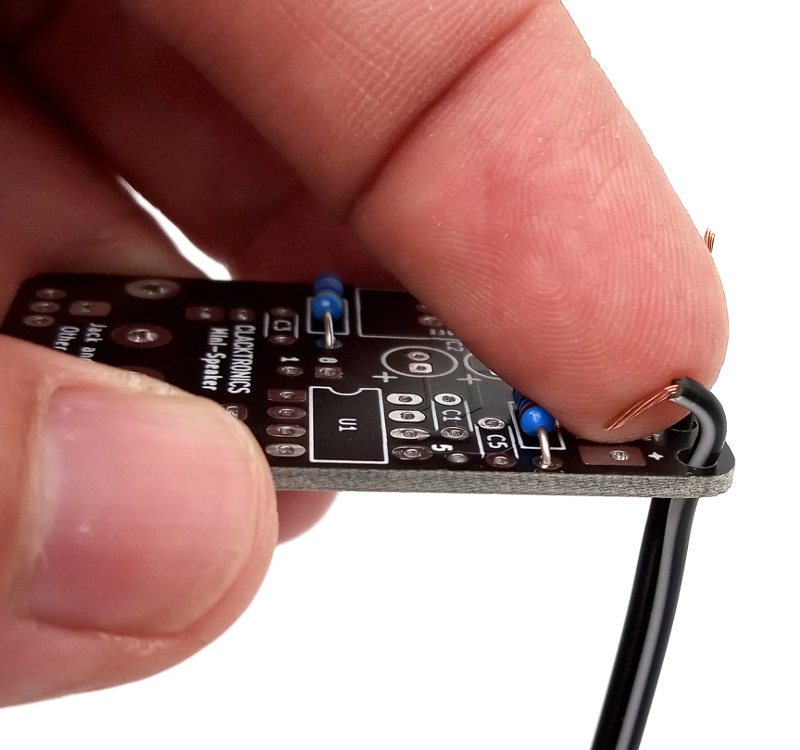

Feed the wire through the hole and bend over so it holds in so you can solder

Wire in palce

The wire should now be in place and look like this

Film Capacitors

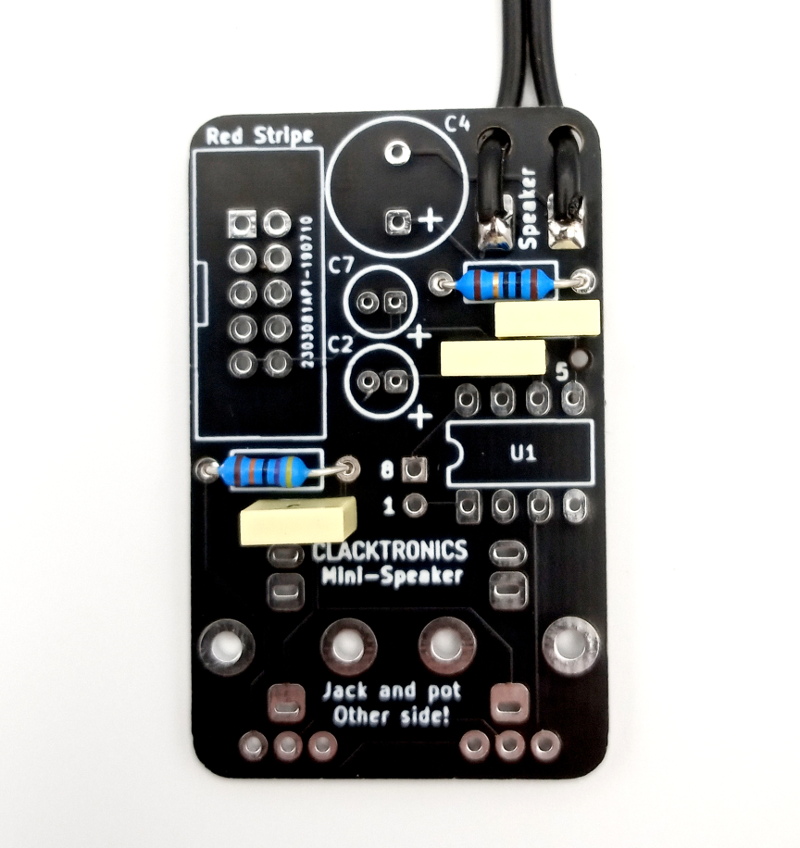

The kit includes three yellow box capacitors. They are not polarized, so they can be fitted in any way around. They are all the same value and fit in C1, C3 and C5

Smaller Electrolytics

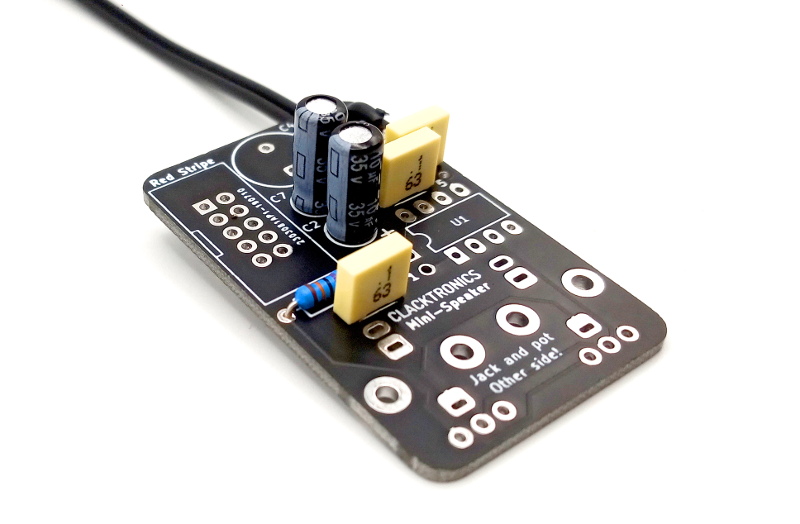

You can now fit the smaller 5mm electrolytic capacitors. They are polarized and are marked on the negative lead with a minus symbol. The PCB has a + symbol for the positive side, place them in as shown

The big electrolytic

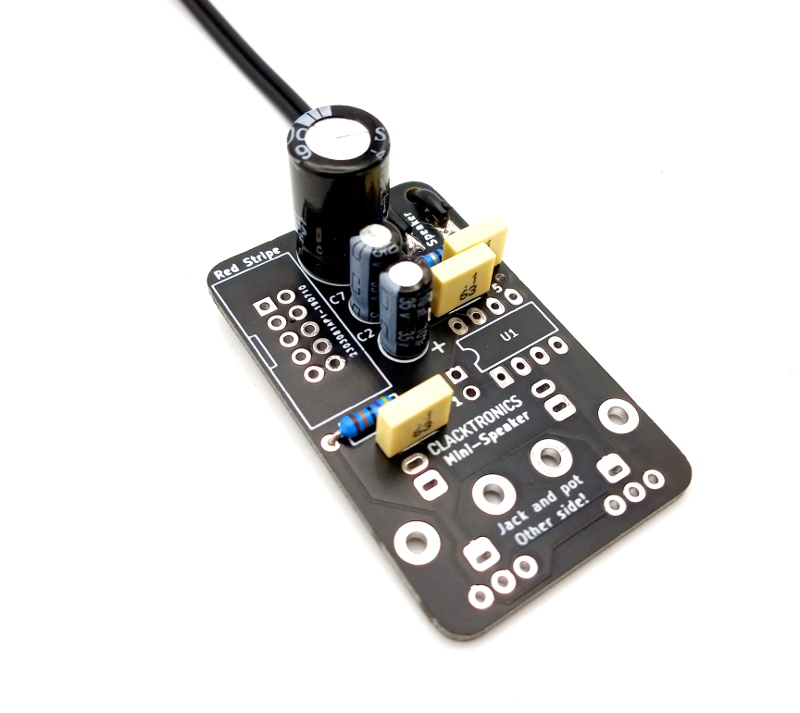

This capacitor makes sure no DC goes to the speaker. This is also a polarized electrolytic capacitor, fit as shown. The marking are the same, the negative is marked on the capacitor and the positive is shown on the PCB

Fit the socket

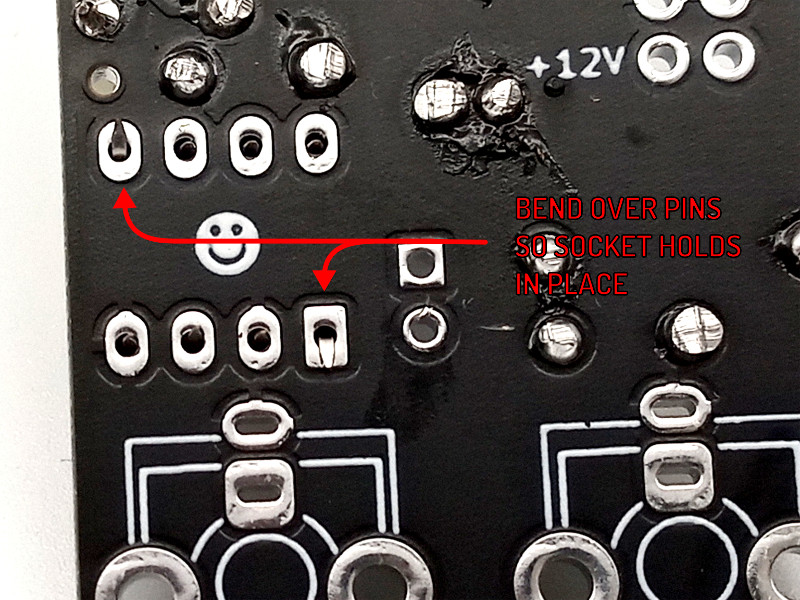

To make it easier and to prevent damage to the IC a socket is used, this is the 8 pin socket pushed onto the black foam. This socket is also polarized, there is a notch at the top to show its orientation and the PCB has a marking to show this. You could use blue tack to hold the PCB down and fit the socket but a trick I like to use is to hold the socket in and bend the pins.

Make sure it is fixed

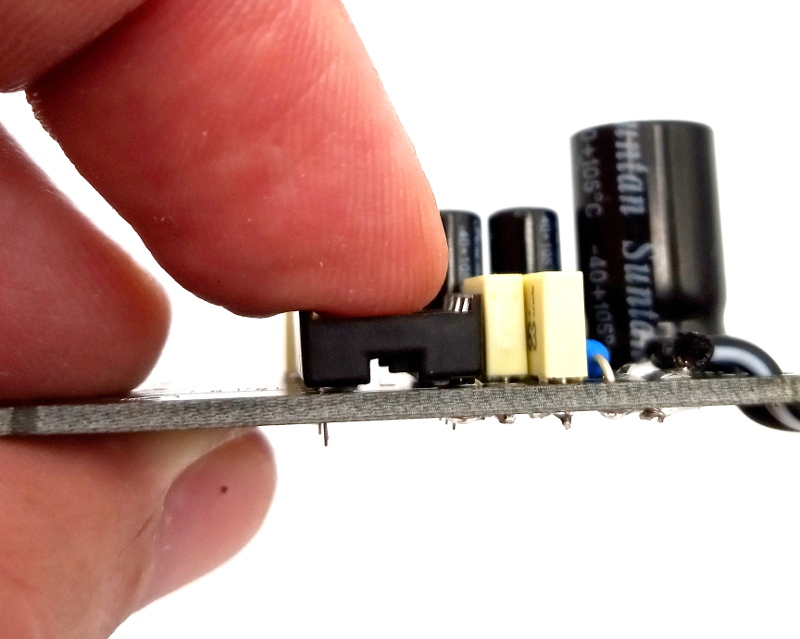

Before properly soldering, make sure the socket is sitting flush on the PCB

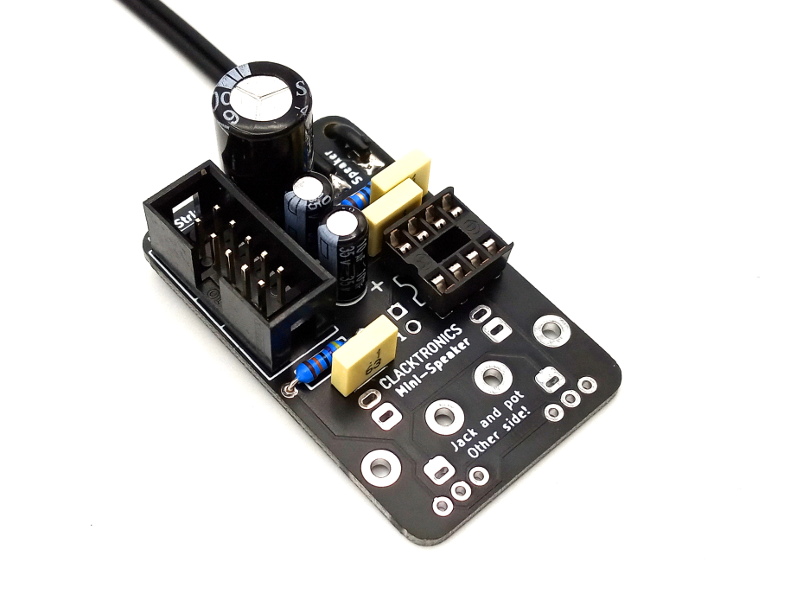

Fir the power connector

This is the power connector. It is hard to show in photos, a trick to get this in place is to tab one pin with solder whilst holding it in place with your hand. I will show this in the assembly video on this page.

Fit the Jack and the Potentiometer

Be very careful here, a misplacement will cause a lot of headaches. Make sure you know what orientation you want the module to be in. This can be either, audio in left and pot right or vice versa. Also the components are placed in the other side of the board, push the parts in and test them out with the panel to make 100% sure it is correct.

From the side

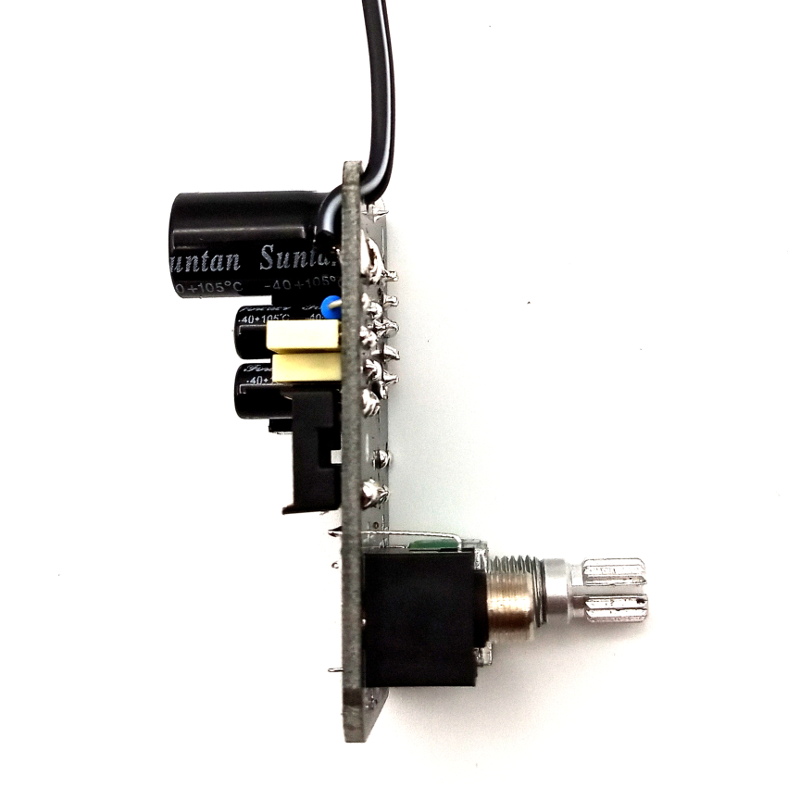

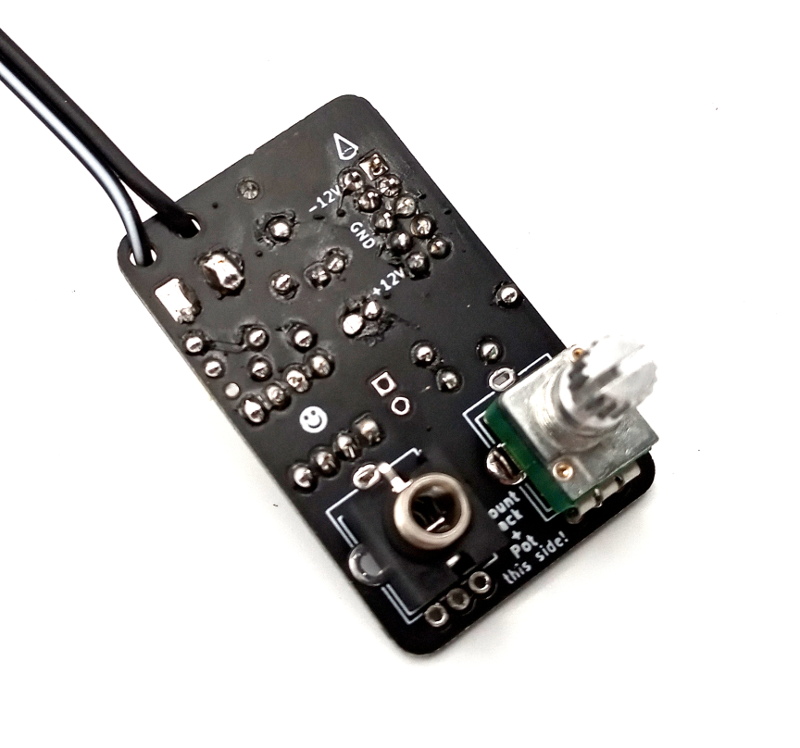

This shows how they should be fitted

Main assembly

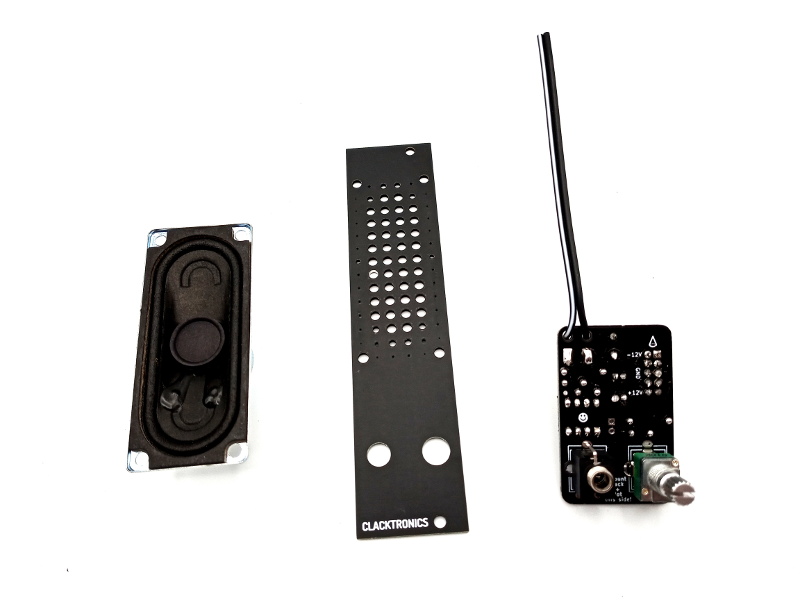

You should now have these three parts

Mount speaker

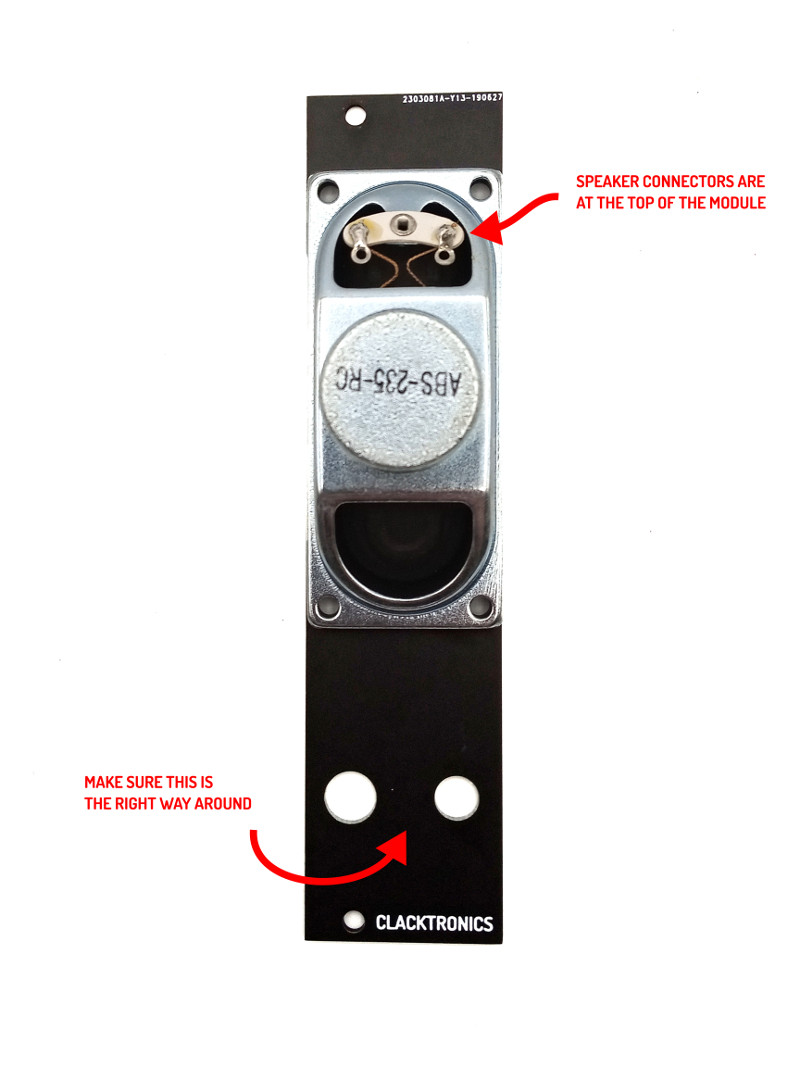

There are four black bolts and four silver M3 nuts in the kit that hold the speaker in place. The speaker has to be mounted with its solder tabs upwardds. Before screwing in make sure you have the front panel the right way

Fitting the board

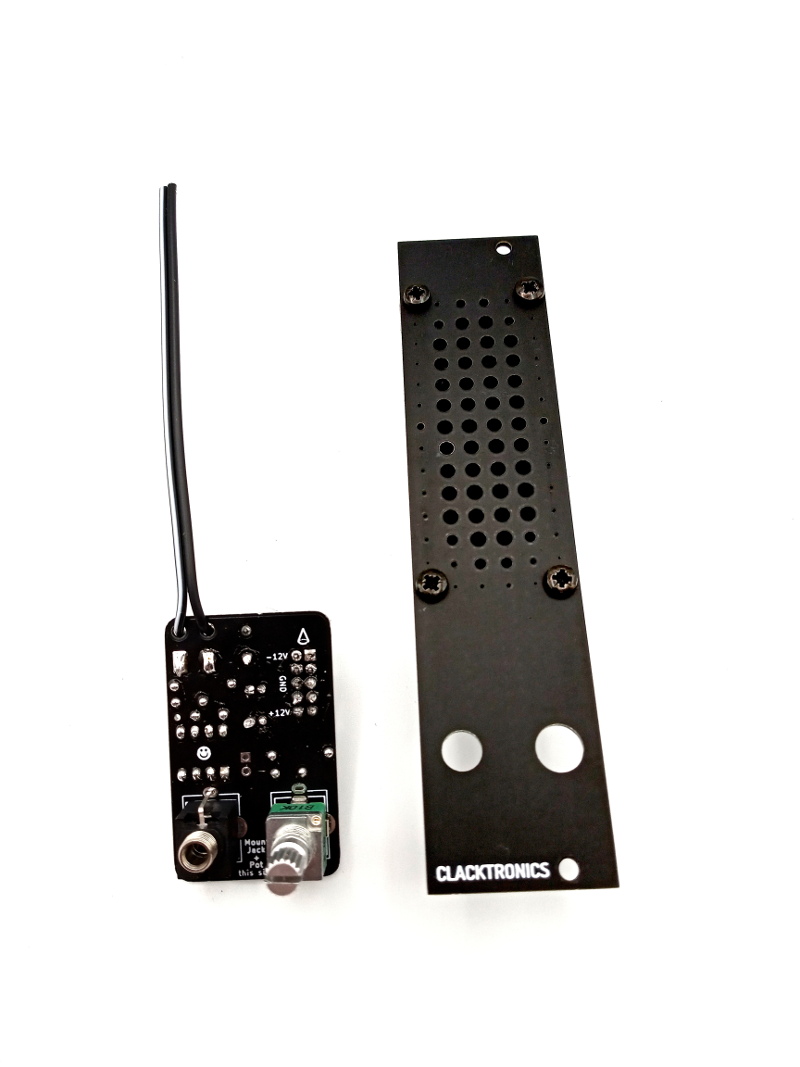

Now it is time to fit the board to the panel. Put the potentiometer and the jack that is attached to the main PCB into the panel. There is a hex nut provided for the jack and a washer with hex nut for the potentiometer

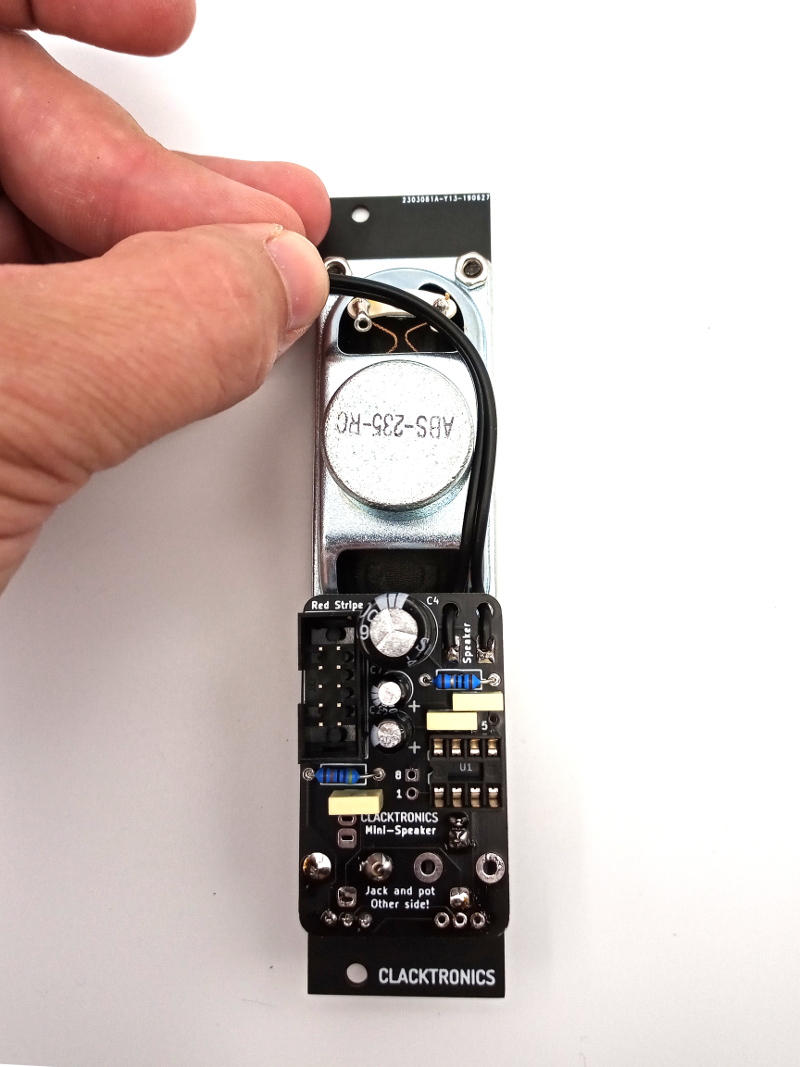

Trim speaker wire

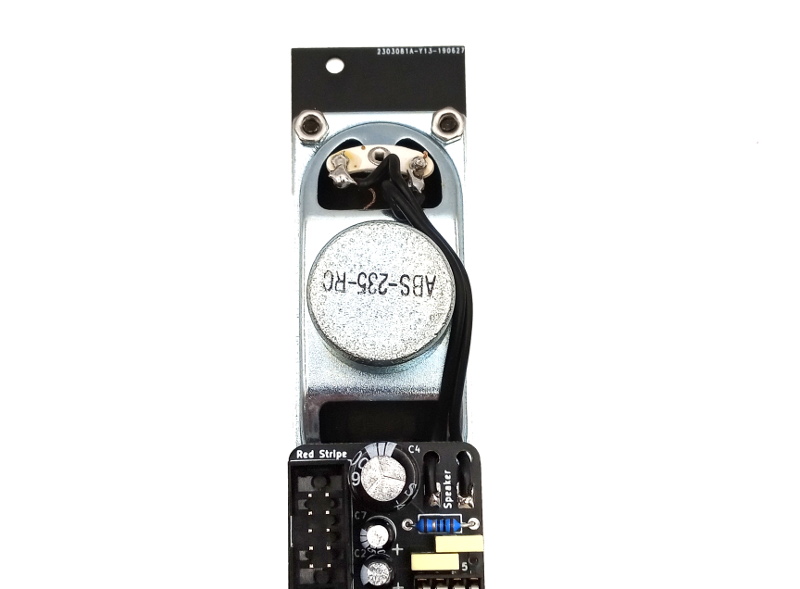

Once fixed in, trim the wire to the correct distance to the solder tabs of the speaker and strip the ends 5mm. Solder + to stripe and - to no-stripe on the speaker terminals.

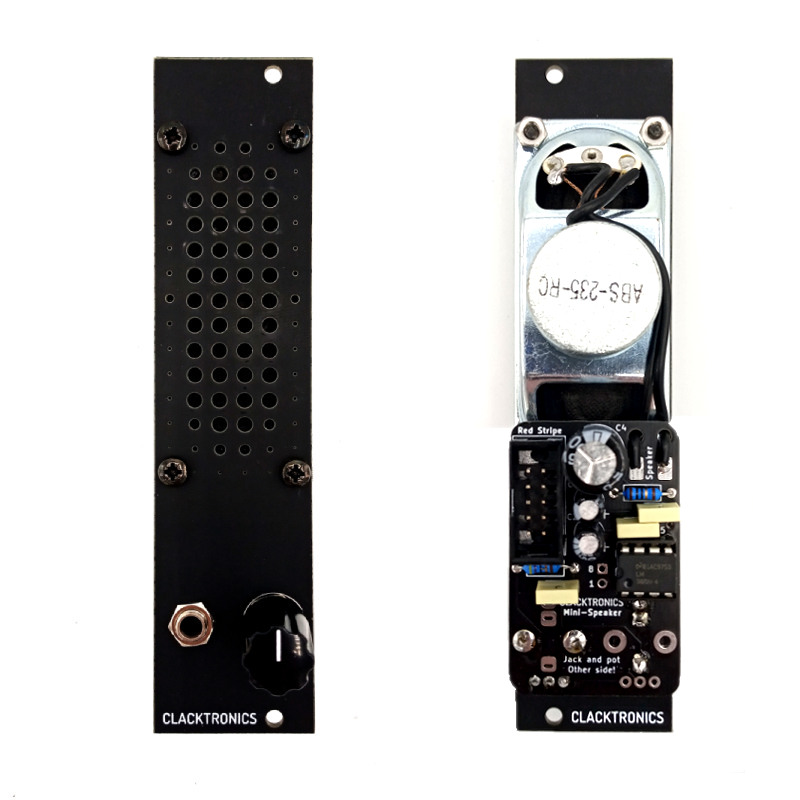

It is built!

Smoke test

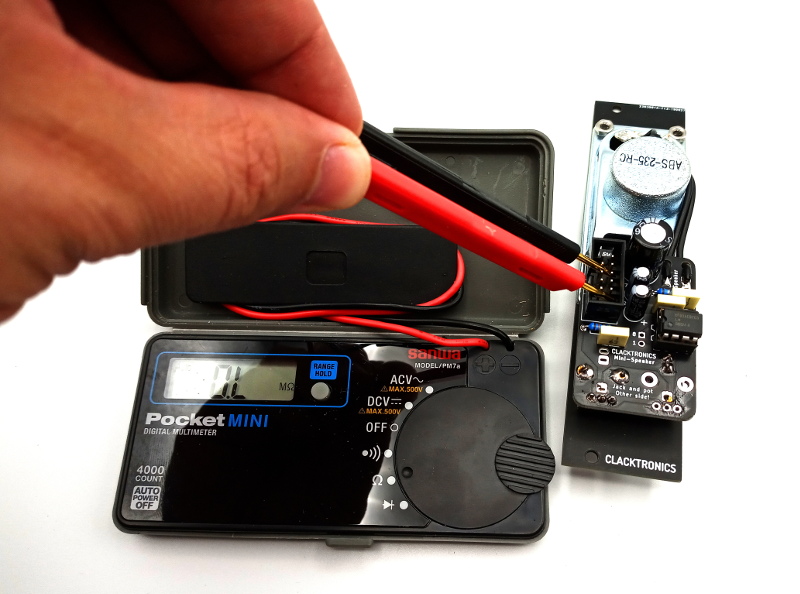

Before plugging into your system, it is reccomended to power it into an isolated power supply, ideally with current limiting. A basic test you should do it to use a multimeter in resistance mode and check the resistance across +12V and GND, this can be found on the connector as shown. Any reading below 1K is suspect. This is not fool proof, visually checking your board and all the compoentns in place is essential.

Downloads and Resources

  1. ibom (right click to save)
  2. Schematic (right click to save)
  3. Github page
  4. Texas Instruments LM386 product page
  5. LM386 Datasheet
  6. JPEG front view (1.2MB)
  7. Modulargrid page


No sound or quiet

  1. Make sure you have soldered all the pins of the potentiometer.
  2. Check R1 AND C3 is correct.
  3. Check there are no bent pins on the IC going into the socket.
  4. Check C4 is the correct way around.

humming, Loud and clipping

  1. Have you swapped R1 and R2?

Notes and Errata

All is good, there have been no circuit changes since its release.

Colour changes, polyester capacitors are now grey, 10u electrolytics are gold stripe

Change the value of R1 down to get more gain, note the IC will get hot, heatsink to improve performance at higher gain
